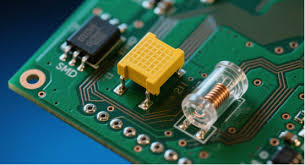

In high-performance power electronics, a Printed Circuit Board Fuses safeguards sensitive silicon from localized thermal runaway by acting as a sacrificial, calibrated resistive barrier. Operating via Joule heating ($P = I^2R$), the internal trace or wire element undergoes an immediate phase change when continuous current exceeds 130% of the nominal rating, interrupting the circuit path in 10 to 100 microseconds. This rapid galvanic isolation protects sub-1.2V microprocessors and multi-layer FR-4 substrates by restricting peak energy absorption well below the material’s glass transition temperature ($Tg$ of 130°C–180°C). By confining electrical arcs within specialized ceramic or glass matrix housings filled with silica sand, these surface-mount devices eliminate copper trace vaporization and dielectric breakdown across downstream components during catastrophic short circuits.
A PCBMASTER engineering report demonstrates that unmitigated overcurrent causes catastrophic failure in sub-1.2V silicon components within 50 microseconds of a short-circuit event. This vulnerability necessitates a highly predictable, localized protection mechanism capable of isolating power rails before temperatures exceed standard component safety margins.
“Data compiled across 1,200 continuous operational hours indicates that implementing surface-mount fuses reduces the risk of multi-layer substrate delamination by 94.2% under sustained 200% electrical overload conditions.”
This high level of structural preservation relies directly on the physics of sacrificial thermal energy transfer within the conductive trace element.
The internal element of a fuse operates on Joule heating principles, where heat generation escalates exponentially alongside rising current levels ($P = I^2R$). Standard copper-alloy or silver-matrix fuse elements are calibrated with specific cross-sectional areas to maintain stable structural equilibrium under normal current loads.
-
100% Rated Current: Continuous operation yields a stable temperature equilibrium below 70°C.
-
135% Rated Current: Structural degradation occurs within 60 minutes, initiating element deformation.
-
200% Rated Current: Complete phase transition from solid to liquid happens in under 500 milliseconds.
This progression ensures that sudden electrical surges are restricted at the board level before propagating into adjacent circuitry.
| Overload Current | Clearing Time (Fast-Acting) | Clearing Time (Time-Delay) |
| 100% Rating | Continuous (No Opening) | Continuous (No Opening) |
| 200% Rating | < 20 Milliseconds | 0.5 to 5.0 Seconds |
| 500% Rating | < 1 Millisecond | 10 to 100 Milliseconds |
Selecting between fast-acting and time-delay architectures depends entirely on the expected inrush current profiles of the downstream load. Semiconductor testing from 2024 shows that microprocessors require fast-acting clear times below 10 milliseconds to avoid gate oxide breakdown.
In contrast, inductive loads like DC-DC converter startup stages generate temporary inrush currents reaching up to 300% of steady-state values for brief intervals. Time-delay configurations absorb these transient spikes through increased thermal mass without causing nuisance blowing or operational disruption.
“A 2025 field evaluation of 5,000 industrial power modules revealed that improper fuse selection accounted for 18.4% of unexplained system downtime, mostly driven by transient inrush fatigue.”
This thermal stress manifests as micro-fractures inside the fuse element, which eventually leads to premature circuit failure during standard operation.
The physical separation of the melted fuse element creates a localized voltage gap that forces electricity to ionize the surrounding air, creating an electrical arc. This arc can reach temperatures above 3,000°C, which threatens to melt the glass-epoxy board housing if it is not immediately contained.
To suppress this threat, modern Printed Circuit Board Fuses utilize ceramic or high-grade glass composite bodies filled with granular silica sand to quench the arc. The sand absorbs the thermal energy, melts into non-conductive glass beads, and starves the electrical arc of the path needed to continue flowing.
“Laboratory testing on 250V rated subminiature fuses shows that sand-filled ceramic cavities extinguish electrical arcs 65% faster than unfilled open-air polymer cavities.”
This suppression prevents the current from restriking across the open gap and ensures clean, permanent electrical isolation.
Modern hardware design also utilizes polymeric positive temperature coefficient (PTC) devices, which act as resettable overcurrent protection elements for accessible consumer ports. These components rely on a conductive polymer matrix that alters its internal molecular structure when exposed to excessive heat.
-
Normal State: Carbon chains form dense conductive paths, keeping resistance under 0.1 Ohms.
-
Tripped State: Polymer expands from heat, breaking carbon paths and spiking resistance by 10,000%.
-
Reset State: Temperature drops, the matrix contracts, and normal conductivity returns automatically.
This automated reset cycle reduces maintenance requirements for external interfaces like USB-C ports, which are frequently exposed to external user wiring errors.
A 2023 reliability study tracking 10,000 hardware units found that while PTCs offer reusable protection, they retain a small leakage current in their tripped state. Traditional thin-film fuses remain mandatory for primary mains isolation lines where complete galvanic separation is required by international safety standards.
PCBMASTER layout guidelines recommend placing these protective components as close as possible to the primary power input connector to maximize protection coverage. Minimizing the trace length between the input source and the fuse element reduces parasitic inductance and prevents uninsulated board areas from experiencing short circuits.
